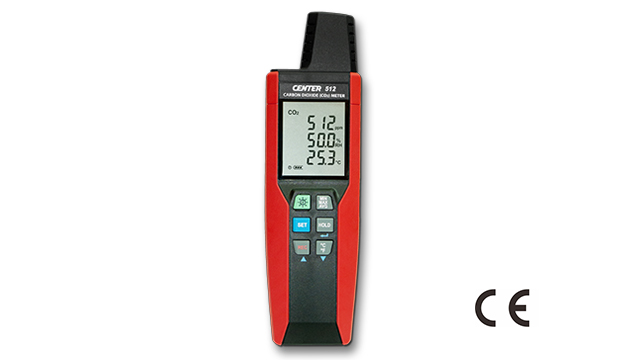

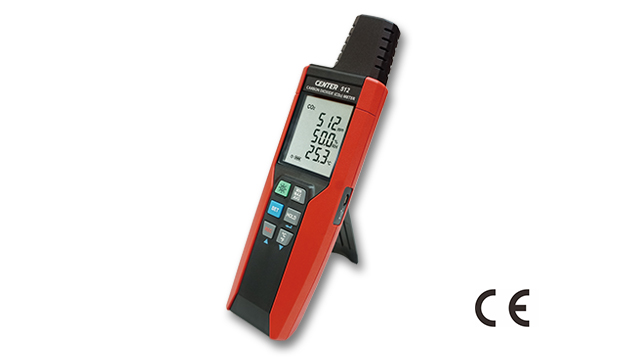

CENTER 512_ Datalogger Carbon Dioxide (CO2) Meter (NDIR)

Production information
FEATURES

• CO2, Humidity And Temperature Sensors
• Dual Wavelength NDIR CO
2 Sensor (Non-Dispersive Infrared) For Superior Stability
• User Operated CO
2 Calibration
• Data Hold & Max/Min/STEL/TWA Function
• Adjustable Auto Power Off Timer
• Internal CO
2 Alarm Buzzer
• Datalogging Up To 32,000 Sets
• USB Interface, PC Software Included
• Backlight Display Function




SPECIFICATIONS

Measurement Range:
  CO2: 0 ~ 30000 ppm
  Temperature: 0 to 50 °C (32 to 122 °F)
  Humidity: 0 ~ 100% RH
Accuracy:
   CO2: ± (75 ppm + 3% of reading)  (0 ~ 5000 ppm)
   Temperature: ± 1.0 °C
   Humidity: ± 4.5% RH
Resolution: 1 ppm, 0.1 °C/ 0.1 °F, 0.1% RH
Response Time: 20 seconds
Battery Type: 9 V alkaline battery
Power Source: 9 V battery or micro USB
Battery life:  Approximately 10 hours normal use (alkaline battery)
Operating Condition: 0 °C to 50 °C(< 90%RH)
Storage Condition: -20 °C to 60 °C(< 75%RH)
Dimensions: 226.5x65x38.5 mm
Weight: 273 g
Accessories: 9V Battery、Instruction Manual、micro USB cable、Windows software、Carrying case.

​ PS.  The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
