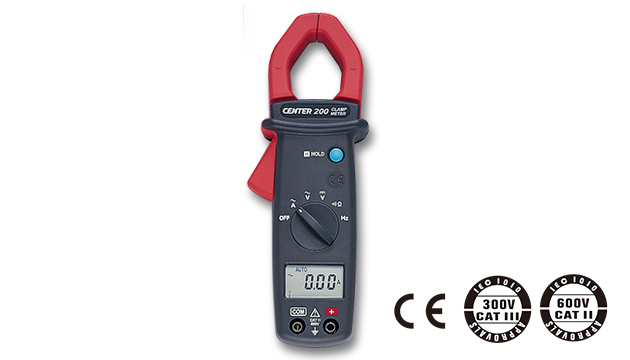

CENTER 200_ AC Clamp Meter (Mini Size)

Production information

• Pocket Size
• High Speed Bargraph
• Data Hold Function
• Touch Zero Function
• Autoranging
• Auto Power Off
• Resolution 0.01A, 0.1V
• Measuring Frequency From Current Clamp & Test Terminal


Function Range Resolution Accuracy
ACA 40A~400A 0.01A~0.1A ±1.9%rdg+5dgts
ACV 400V~600V 0.1V~1V ±1.5%rdg+5dgts
DCV 400V~600V 0.1V~1V ±1%rdg+2dgts
Ohms 400Ω 0.1Ω ±1%rdg+2dgts
Hz(A) 20Hz~10KHz 1Hz~10Hz ±0.1%rdg+1dgt
Hz(v) 10Hz~1MHz 1Hz~1KHz ±0.1%rdg+1dgt
))) Active Sound Level: ≦ 40Ω
Display: 3-3/4 digital(4000 count) display
Sampling Rate:
2 times/sec(digital reading)
20 times/sec(analog bar indication)
Battery: 1.5V, size AAA battery x 2
Dimensions: 193x50x28 mm
Weight: 240g
Maximum Jaw Opening: ø 25 mm
 PS.  The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
