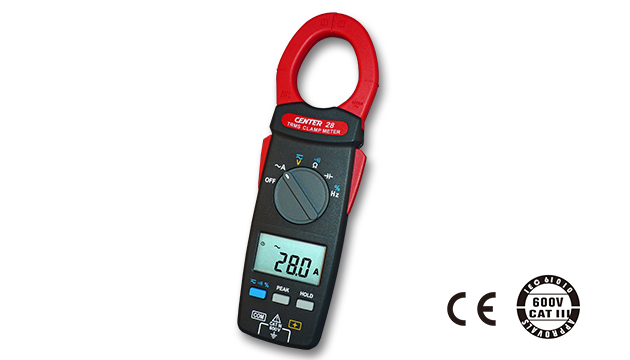

CENTER 28_ TRMS AC Clamp Meter (AC1000A, Slim & Lightweight Size)

Production information

• Slim and Lightweight Size
• True RMS Measuring
• Measuring Current : AC 1000A
• Data Hold Function
• 1ms Peak Hold Function
• Capacitor Function
• Measuring Frequency From Current Clamp & Test Terminal
• Auto Power Off
• Autoranging

Function Range Resolution Accuracy
ACA 600A/1000A 0.1A/1A  50Hz~60Hz
±1.9%rdg ±5dgts
±2.5%rdg ±5dgts
ACV 6V/60V/600V 0.001V/0.01V/0.1V ±1.2%rdg ±5dgts
DCV 6V/60V/600V 0.001V/0.01V/0.1V ±1%rdg ±2dgts
Ohms 600Ω/6KΩ/60KΩ/600KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ  ±1%rdg ±2dgts
Capacitance 6uF/60uF/600uF 0.001uF/0.01uF/0.1uF ±3%rdg ±10dgts
Hz(A) 600Hz/6KHz 0.1Hz/0.001KHz ±0.2%rdg ±2dgts
Hz(V) 600Hz/6KHz/60KHz 0.1Hz/0.001KHz/0.01KHz ±0.2%rdg ±2dgts
Duty Cycle(%) 1~99% 0.1% ±0.5%
Display: 4 digital Liquid display, maximum reading 6000
Sampling Rate: 2 times/sec
Battery: CR2032(3VDC) battery x 1
Dimensions: 207x 66x 26 mm
Weight: approx.153g
Maximum Jaw Opening: ø 40 mm

PS.  The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
