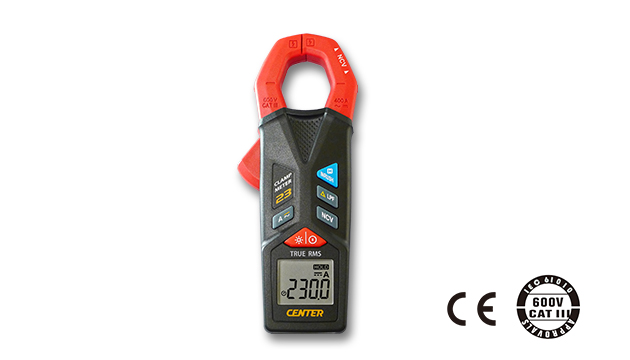

CENTER 23_ TRMS AC/DC Clamp Meter (Pocket Size)
Production information
FEATURES
• Pocket Size Clamp Meter
• AC Current Measuring Capability Up To 400Amps
• True RMS Measurement On AC Mode
• Inrush Current Measurement
• NCV(Non-contacted Voltage Detection) Function
• LPF (Low Pass Filter) Function
• Data Hold Function
• Auto Power Off(15 min) Function
• Backlight Function
• DCA Zero Function Key
SPECIFICATIONS
| Function | Range | Resolution | Accuracy | |
|---|---|---|---|---|
| ACA(Autorange) | 40.00 A 400.0 A |
10 mA 100 mA |
50Hz~60Hz ± 2.0%rdg + 5dgts |
45Hz~400Hz ± 3.8%rdg + 8dgts |
| DCA(Autorange) | 40.00 A 400.0 A |
10 mA 100 mA |
± 2%rdg + 5dgts | |
| NCV | 80V~600VAC | Indicator: 4 tone beeper alarm & 4 segment LCD display | ||
| Display: 4 digital Liquid display, maximum reading 4200 |
| Sampling Rate: 2 times/sec |
| Battery: 1.5V size AAA battery x 2 |
| Dimensions: 149x59x27.5 mm |
| Weight: approx.133g |
| Maximum Jaw Opening: ø 23 mm |
PS. The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
