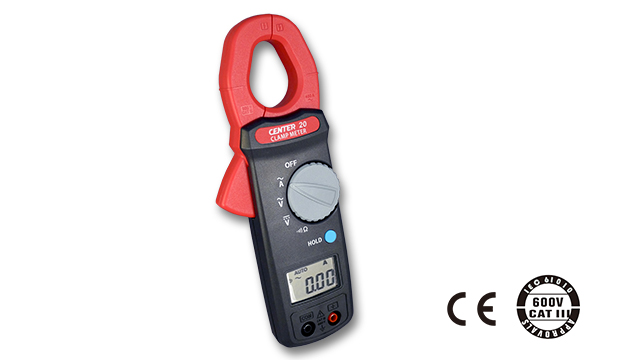

CENTER 20_ AC/DC Clamp Meter (Economy)

Production information

• Auto Switch Between AC and DC Voltage
• Auto Switch Between Capacitance, Diode Test, Continuity, and Resistance
• NCV (non-contacted voltage detection) Function
• AC/DC Voltage Measurement Up to 600V
• AC Current Measurement Up to 600A

Function Range Resolution Accuracy
ACA 40A/400A 0.01A/0.1A ±1.9%rdg +3dgts
ACV 400V/600V 0.1V/1V ±1.2%rdg +3dgts
DCV 400V/600V 0.1V/1V ±1%rdg +3dgts
Ohms 400Ω ±1%rdg ± 2dgts
))) < 25Ω
Display: 3 3/4 digital Liquid display, Maximum reading 3999
Sampling Rate: 2 times/sec
Battery: 1.5V size AAA battery x 2
Dimensions: 203x75x32 mm
Weight: 262g
Maximum Jaw Opening: ø 25.4 mm

PS.The specifications and other information in this catalogue are subject to change without prior notice.
Please contact sales person for the latest specifications update.
