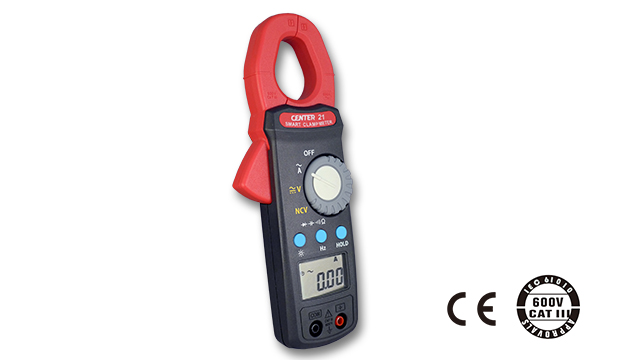

CENTER 21_ AC/DC Smart Clamp Meter (Economy)
Production information
FEATURES
• Auto Switch Between AC and DC Voltage
• Auto Switch Between Capacitance, Diode Test, Continuity, and Resistance
• NCV (non-contacted voltage detection) Function
• AC/DC Voltage Measurement Up to 600V
• AC Current Measurement Up to 600A
SPECIFICATIONS
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| ACA | 60A/600A | 0.01A/0.1A | ± 1.9%rdg +5dgts |
| ACV/DCV | 6V/60V/600V | 0.001V/0.01V/1V | ±1%rdg ± 3dgts |
| Ohms | 600Ω~6MΩ | 0.1Ω~0.001MΩ | ±1.2%rdg +3dgts |
| Capacitance | 6nF 60nF/600nF 6uF/60uF/600uF |
0.001nF 0.01nF/0.1nF 0.001uF/0.01nF/0.1uF |
±3%rdg +0.03nF ±3%rdg +10dgts ±3%rdg +10dgts |
| Hz(A) | 6KHz/10KHz | 0.001KHz/0.01KHz | ±0.2%rdg +2dgts |
| Hz(v) | 6KHz/60KHz/100KHz | 0.001KHz/0.01KHz/0.1KHz | ±0.2%rdg +2dgts |
| •))) / Diode | < 30Ω / 0~1.2V | ||
| Display: 3 5/6 digital Liquid display, Maximum reading 5999 |
| Sampling Rate: 2 times/sec |
| Battery: 1.5V size AAA battery x 2 |
| Dimensions: 203x75x32 mm |
| Weight: 270g |
| Maximum Jaw Opening: ø 25.4 mm |
PS.The specifications and other information in this catalogue are subject to change without prior notice.
Please contact sales person for the latest specifications update.
