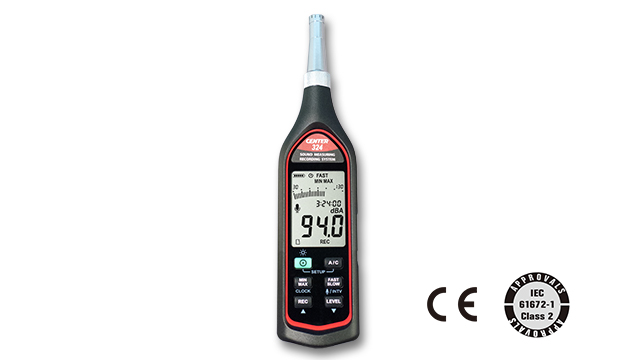

CENTER 324_ Sound Measuring Recording System (IEC 61672-1 class 2)
Production information
FEATURES
• PC Software To Synchronize Sound And SPL Data For Analysis
• Micro SDHC For Sound Recording Up To 32G
• Comply With IEC 61672-1 Class 2 Standard
• 128,000 Records Datalogger (Internal)
• Real Time Clock With Calendar
• Sound Recording Function
• AC/DC Signal Output
• USB Interface
SPECIFICATIONS
| Measurement Range: 30~130dB |
| Level Range: 30~90dB, 50~110dB, 70~130dB |
| Accuracy: ±1.0dB (ref. 94dB@1KHz) |
| Frequency Weighting: A / C |
| Time Weighting: Fast, Slow |
| Frequency Range: 20Hz to 8KHz |
| Microphone: ½ inch Electret condenser microphone |
| Auxiliary Outputs: AC/DC Output |
| Battery: 1.5V AA size battery x 4 |
| Dimensions: 270x63x29 mm |
| Weight: Approx.305g |
