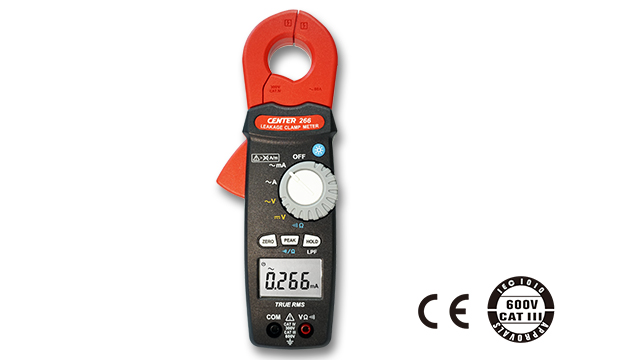

CENTER 266_ TRMS AC Leakage Clamp Meter (0.001mA)

Production information
FEATURES

• 0.001 mA Current Resolution
• Comply With IEC61557-13: Class 2, ≦ 30A/m
• True RMS Measurement For All Applications
• Low Pass Filter Function
• Backlight Function
• Peak Hold Function
• Data Hold Function
• Zero Function
• Auto Power Off


SPECIFICATIONS

Function Range Resolution Accuracy
ACmA 6.000mA/60.00mA/600.0mA 0.001mA/0.01mA/0.1A ± 1%rdg ± 8dgts
ACA 6.000A/60.00A 0.001A/0.01A ± 1%rdg ± 5dgts
DCV 60V/600V 0.01V/0.1V ±1%rdg ± 2dgts
ACV 60V/600V 0.01V/0.1V ± 1.2%rdg ± 3dgts
Ohms 600Ω/6KΩ/60KΩ/600KΩ 0.1Ω/1Ω/10Ω/100Ω ±1%rdg ± 2dgts
)))_Active Sound Level < 45Ω

Display: 4 digital Liquid display, Maximum reading 6000
Sampling Rate: 2 times/sec
Battery: 1.5V size AAA battery x 2
Dimensions: 206x76x33.5 mm
Weight: 270g
Maximum Jaw Opening: ø 23 mm

PS.  The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
